Android Sticky Header RecyclerView

https://github.com/DNights/StickyHeaderRecyclerViewSample

DNights/StickyHeaderRecyclerViewSample

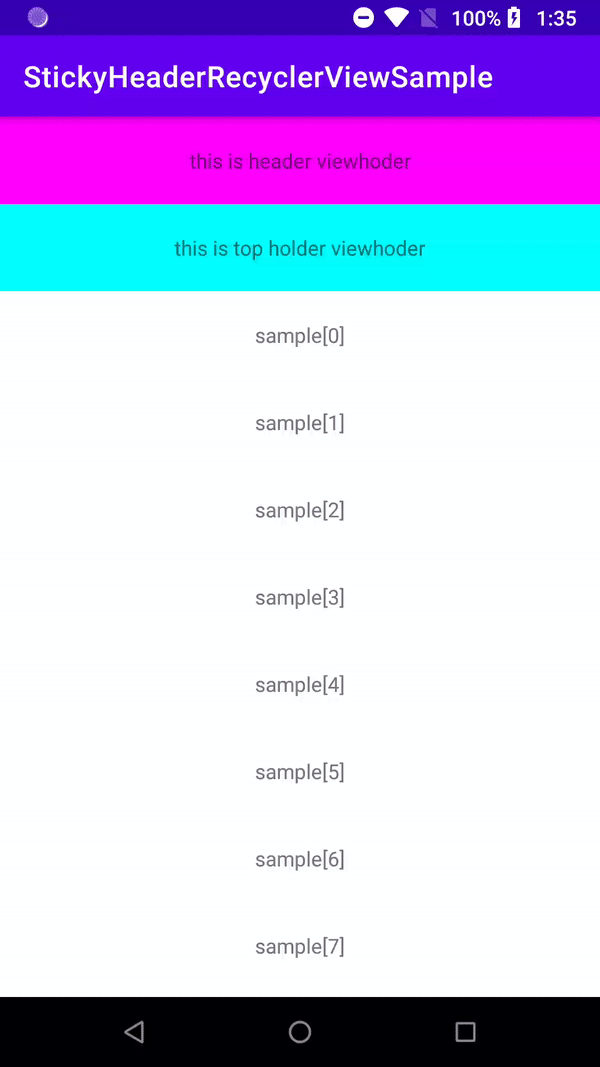

RecyclerView 에서 Sticky Header 를 구현 샘플 코드입니다.



ItemDecoration 을 사용하여 상단의 Top holder를 RecyclerView 위에 그려서 고정된것처럼 보이게 하는 방법입니다.



아래의 코드는 StickyHeaderItemDecoration 의 전체 코드입니다.



[StickyHeaderItemDecoration]

package dev.dnights.stickyheaderrecyclerviewsample

import android.graphics.Canvas
import android.view.View
import android.view.ViewGroup
import androidx.recyclerview.widget.RecyclerView

class StickyHeaderItemDecoration(private val sectionCallback: SectionCallback) :
    RecyclerView.ItemDecoration() {
    override fun onDrawOver(c: Canvas, parent: RecyclerView, state: RecyclerView.State) {
        super.onDrawOver(c, parent, state)

        val topChild = parent.getChildAt(0) ?: return
        val topChildPosition =
            parent.getChildAdapterPosition(topChild)

        if (topChildPosition == RecyclerView.NO_POSITION) {
            return
        }

        val currentHeader: View =
            sectionCallback.getHeaderLayoutView(parent, topChildPosition) ?: return
        fixLayoutSize(parent, currentHeader, topChild.measuredHeight)

        val contactPoint = currentHeader.bottom
        val childInContact: View = (getChildInContact(parent, contactPoint) ?: return)

        val childAdapterPosition = parent.getChildAdapterPosition(childInContact)
        if (childAdapterPosition == -1) {
            return
        }

        if (sectionCallback.isHeader(childAdapterPosition)) {
            moveHeader(c, currentHeader, childInContact)
            return
        }
        drawHeader(c, currentHeader)
    }

    private fun getChildInContact(parent: RecyclerView, contactPoint: Int): View? {
        var childInContact: View? = null
        for (i in 0 until parent.childCount) {
            val child = parent.getChildAt(i)
            if (child.bottom > contactPoint) {
                if (child.top <= contactPoint) {
                    childInContact = child
                    break
                }
            }
        }
        return childInContact
    }

    private fun moveHeader(c: Canvas, currentHeader: View, nextHeader: View) {
        c.save()
        c.translate(0f, nextHeader.top - currentHeader.height.toFloat())
        currentHeader.draw(c)
        c.restore()
    }

    private fun drawHeader(c: Canvas, header: View) {
        c.save()
        c.translate(0f, 0f)
        header.draw(c)
        c.restore()
    }

    private fun fixLayoutSize(parent: ViewGroup, view: View, height: Int) {
        val widthSpec = View.MeasureSpec.makeMeasureSpec(parent.width, View.MeasureSpec.EXACTLY)
        val heightSpec = View.MeasureSpec.makeMeasureSpec(parent.height, View.MeasureSpec.EXACTLY)
        val childWidth: Int = ViewGroup.getChildMeasureSpec(
            widthSpec,
            parent.paddingLeft + parent.paddingRight,
            view.layoutParams.width
        )
        val childHeight: Int = ViewGroup.getChildMeasureSpec(
            heightSpec,
            parent.paddingTop + parent.paddingBottom,
            height
        )
        view.measure(childWidth, childHeight)
        view.layout(0, 0, view.measuredWidth, view.measuredHeight)
    }


    interface SectionCallback {
        fun isHeader(position: Int): Boolean
        fun getHeaderLayoutView(list: RecyclerView, position: Int): View?
    }
}



onDrawOver 에서 RecycleView 위에 덮어서 화면을 그리며

callback 을 통해서 현재 상단 위치의 item의 view type이 header 인지 여부와 header의 view 를 받아서

cavers에 moveHeader를 통해서 header가 만났을때 이동하는 모습을 그리거나

drawHeader을 통해서 항상 상단에 표기되도록 그립니다.
